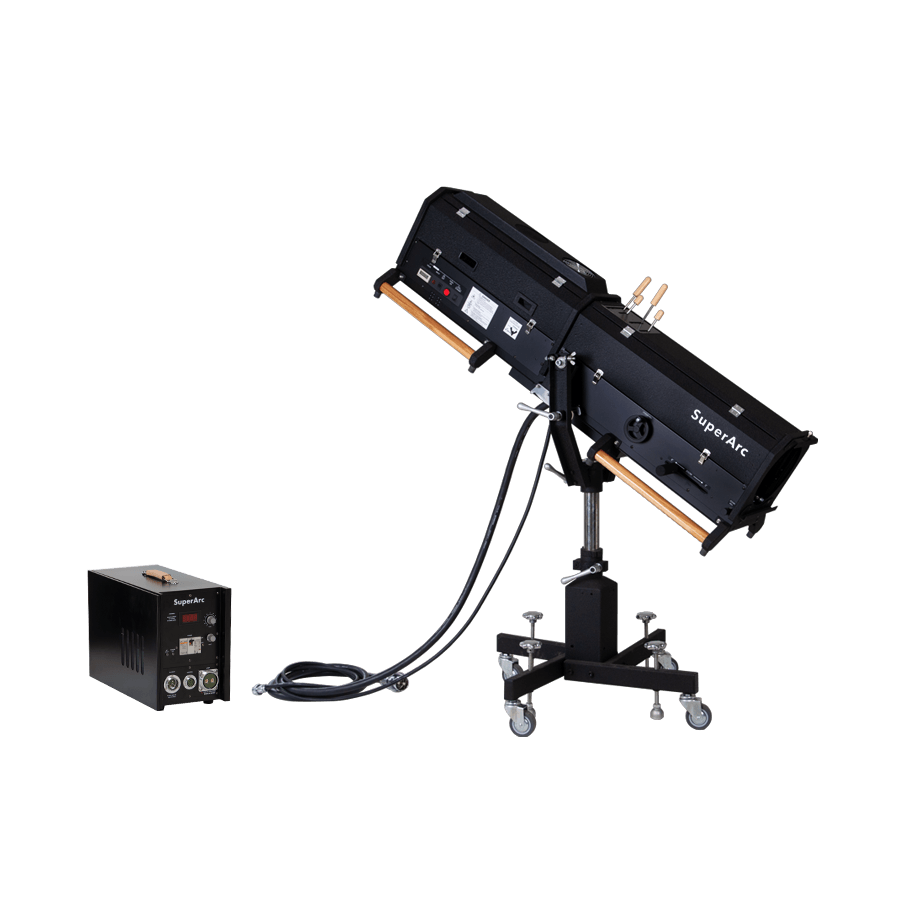

SA-2001
2000W Xenon Spotlight

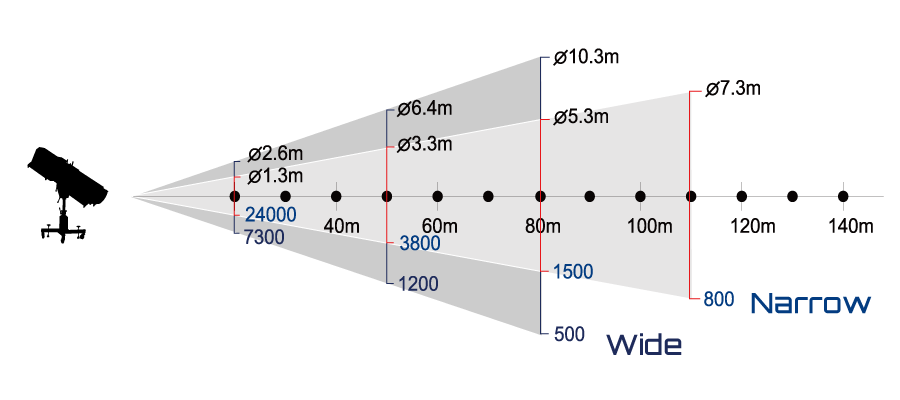

Xenon Lamp with unique high CRI, which makes the skin color of performers appear naturally. The total luminous flux reaches 70000 lumens, and the color temperature(CCT) is constant 6000K. Spot head weight reduced significantly, and structure made of new materials that could improve the impact resistance, meanwhile design emphasized electrical safety and operator protection. Diverse operation functions such as Dimming, cutting, soft edge, color changing, could fully meet the needs of the stage performance.
Includes：Spot Head, Xenon Lamp,Stand, Color Changer, Ballast, Cables
| Nomenclature | Description | |
|---|---|---|
| Zoom Lens System | Regulation of beam angle with auto-focus function | |
| IRIS Shutter | Regulation of followspot diameter | |
| Dowser | Mechanical dimming regulation | |
| Cutting Shutter | Lateral light shielding control | |
| Color Changer | Accomodates 6 color filters | |
| Soft Edge Filter | Detaching of soft filter | |
| Focus Adjustment | Adjustment of followspot focus | |
| Balance System | Easy adjustment of centroid | |
| Safety Ring | Rapid decent prevention of stand | |
| Full/Half Manual Switch | Selection of lamp current | |
| Full/Half Auto Switch | Automatic changeover to lamp current when Iris is Shutter, Dowser & Cutting Shutter are closed (opened) | |
| Safety Switch | Cuts off power when cover is opened | |
| Hour Meter | Counting lamp operating hours | |
Lamp
| Model | SXB-20A SAN-EI JAPAN |
| Current | 70A |
| Life Span | 800hr |

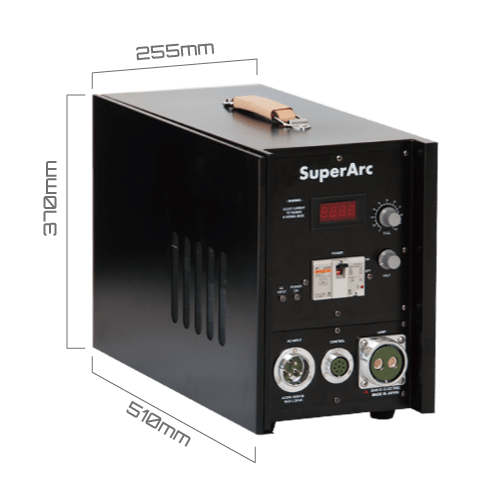

Ballast
| AC Input Voltage | 220V |
| AC Input Current | 20A |
| Weight | 20kg |
| Size | 51 x 37 x 25.5cm |

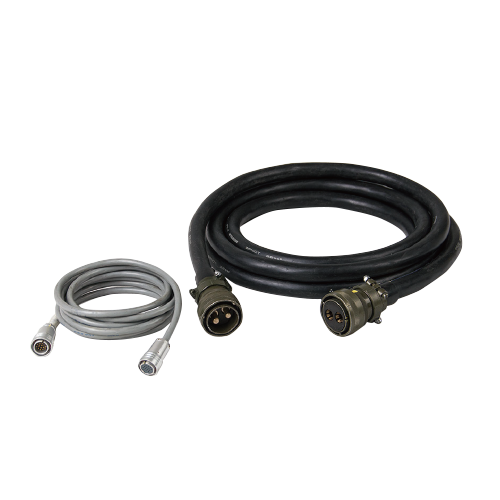

Cable Assembly
| Main Cable | 2 x 22mm2, length 5m |
| Signal Cable | 8 x 0.75mm2, length 5m |
| Ballast Cable | 3 x 4mm2, length 4m |
