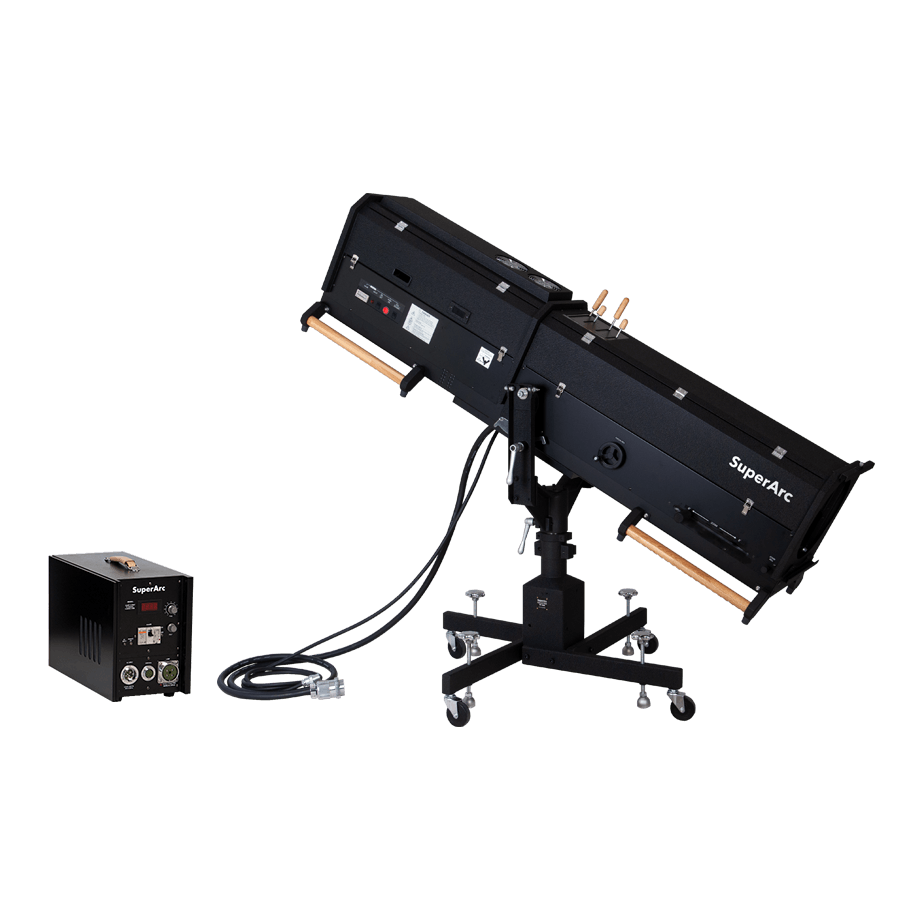

SA-3001

3000W Xenon Spotlight

With the original optical system and xenon lamp, the total flux of SA-3001 is 110000 lumens, that could meet the demand of 150m long distance. The electrical safety and operator protection are emphasized, The diverse operation and firm structure design make it excellent performance in Stadium and Gymnasium.

Includes：Spot Head, Xenon Lamp,Stand, Color Changer, Ballast, Cables

Total luminous flux 110000lm
Illuminance 3.19G Nits(cd/m2)
色 温 6000K
CRI ≥98

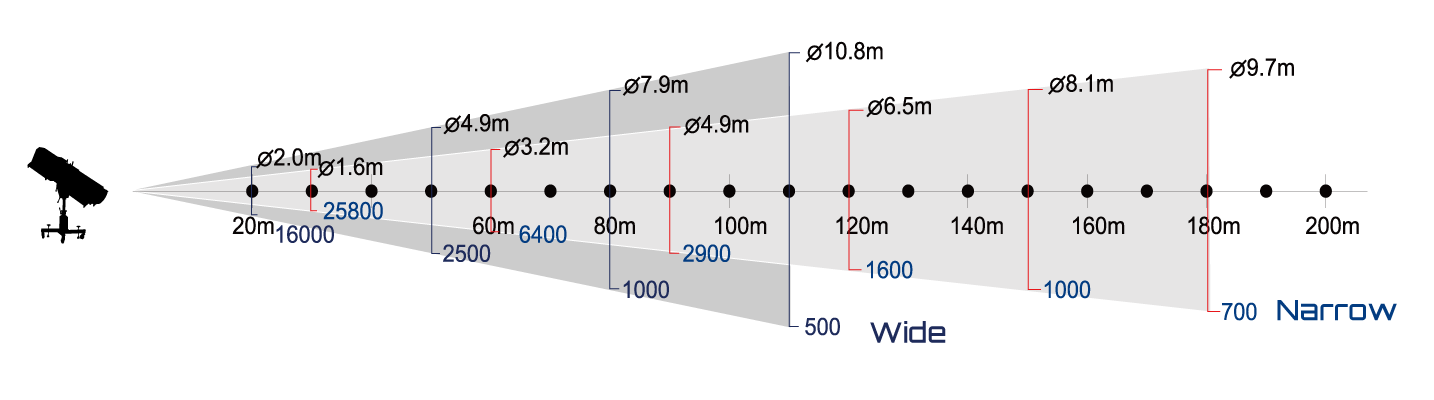

Beam Angle 3.0° ～ 8.0°

 Nomenclature Description
Zoom Lens System Regulation of beam angle with auto-focus function
IRIS Shutter Regulation of followspot diameter
Dowser Mechanical dimming regulation
Cutting Shutter Lateral light shielding control
Color Changer Accomodates 6 color filters
Soft Edge Filter Detaching of soft filter
Focus Adjustment Adjustment of followspot focus
Balance System Easy adjustment of centroid
Safety Ring Rapid decent prevention of stand
Full/Half Manual Switch Selection of lamp current
Full/Half Auto Switch Automatic changeover to lamp current when Iris is Shutter, Dowser & Cutting Shutter are closed (opened)
Safety Switch Cuts off power when cover is opened
Hour Meter Counting lamp operating hours


Lamp

Model SXB-30A
SAN-EI JAPAN
Current 100A
Life Span 800hr

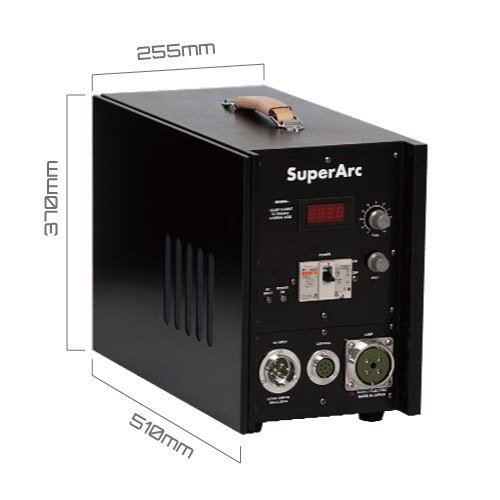

Ballast

AC Input Voltage 220V
AC Input Current 25A
Weight 20kg
Size 51 x 37 x 25.5cm

Cable Assembly

Main Cable 4 x 14mm2, length 5m
Signal Cable 8 x 0.75mm2, length 5m
Ballast Cable 5 x 4mm2, length 4m

Specification

Weight Spot Head: 65kg (84kg include packing)
Stand: 25kg (41kg include packing)
Ballast: 20kg ( 22kg include packing)

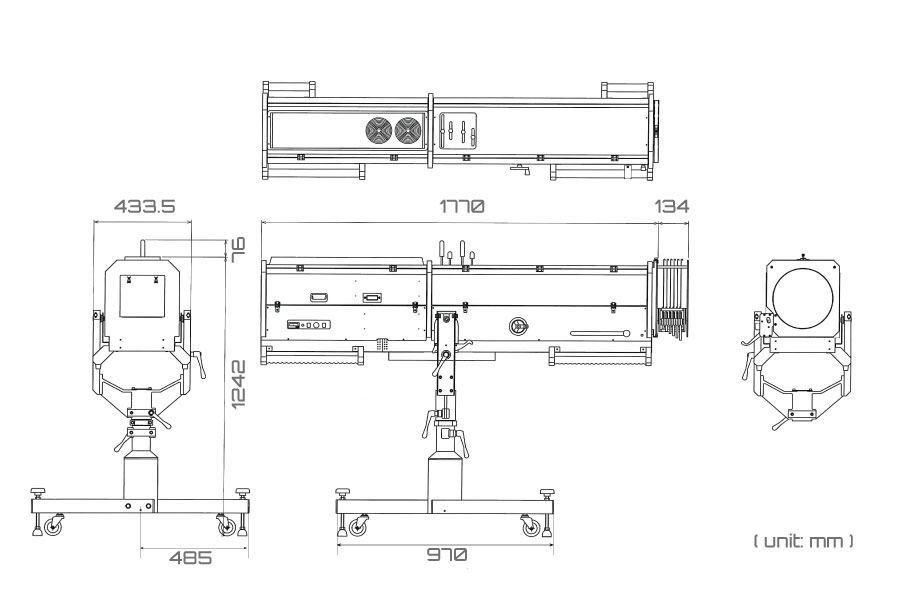

Packing Size
(L x W x H)		 Spot Head: 193ｘ61ｘ64cm
Stand: 85ｘ82ｘ59cm
Ballast: 52ｘ60ｘ32cm
